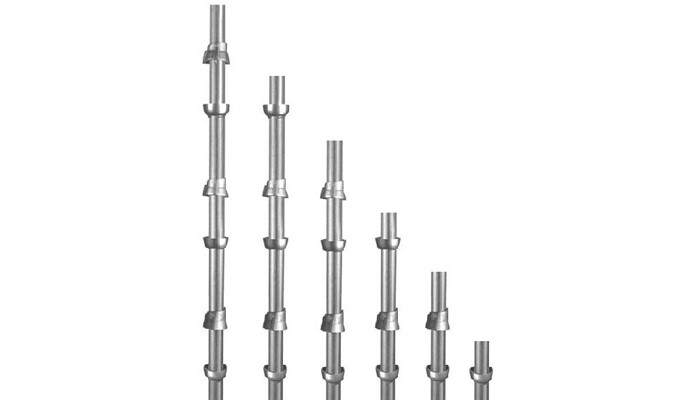

Cuplok Standards are made from 48.3mm 3.2mm steel tube and have every 500mm a unique fixed lower cup with a captive free top cup to allow horizontal components of the Cuplok system to connect.
Size (Mtr.) Wt. (Kg)
1.0 5.0
1.3 6.6
1.5 7.9
1.8 9.1
2.0 10.9
2.3 11.6
2.5 13.4
2.8 14.3
3.0 16.1
Cuplok Ledgers are made from 48.3mm x 3.2mm steel tube which has forged ends blades welded at both the end of the tube.
Size (Mtr.) Wt. (Kg)
0.6 2.3
0.9 3.7
1.0 4.1
1.2 4.8
1.3 5.2
1.5 5.8
1.6 6.2
1.8 7.0
2.5 9.5
Cuplock Intermediate Transom provides a safe mid-bay support for 38mm scaffold boards. They hold the ledgers in their jaw sections and prevent the central bending of the platform boards.
Size (Mtr.) Wt. (Kg)
0.6 4.3
0.9 5.2
1.0 5.7
1.2 6.3
1.3 6.7
1.6 7.9
1.8 8.4
2.5 10.8
Spigots are bolted to lower vertical and are used when necessary vertical are connected end to end.
Wt. (Kg)
0.50
